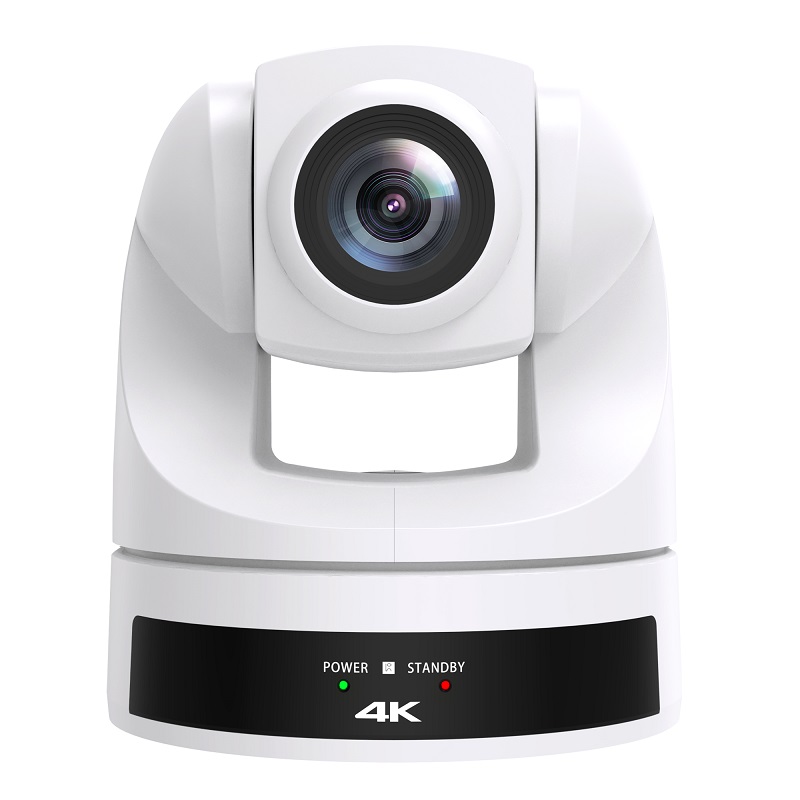

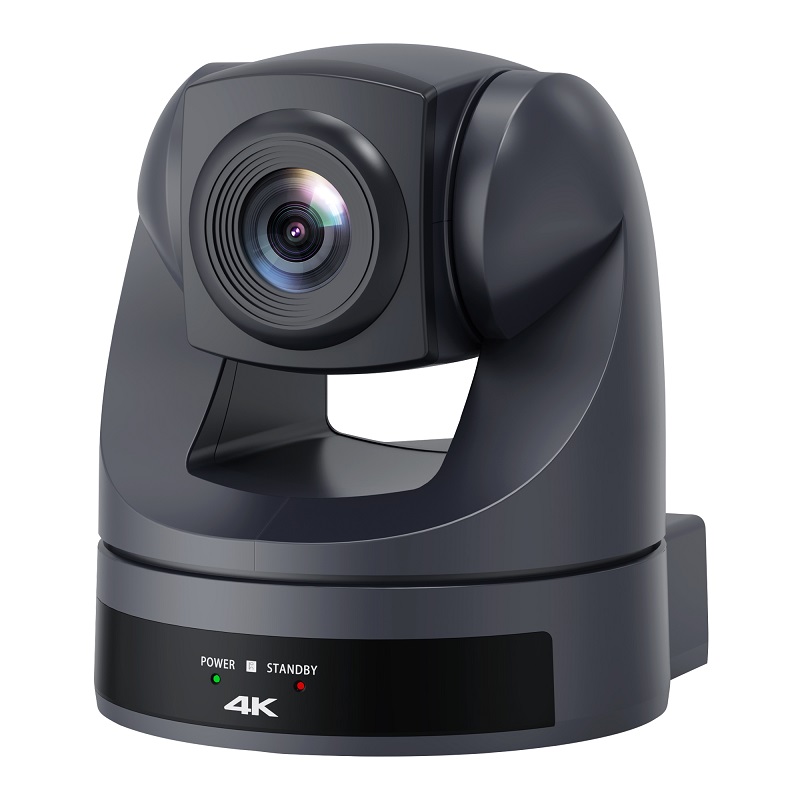

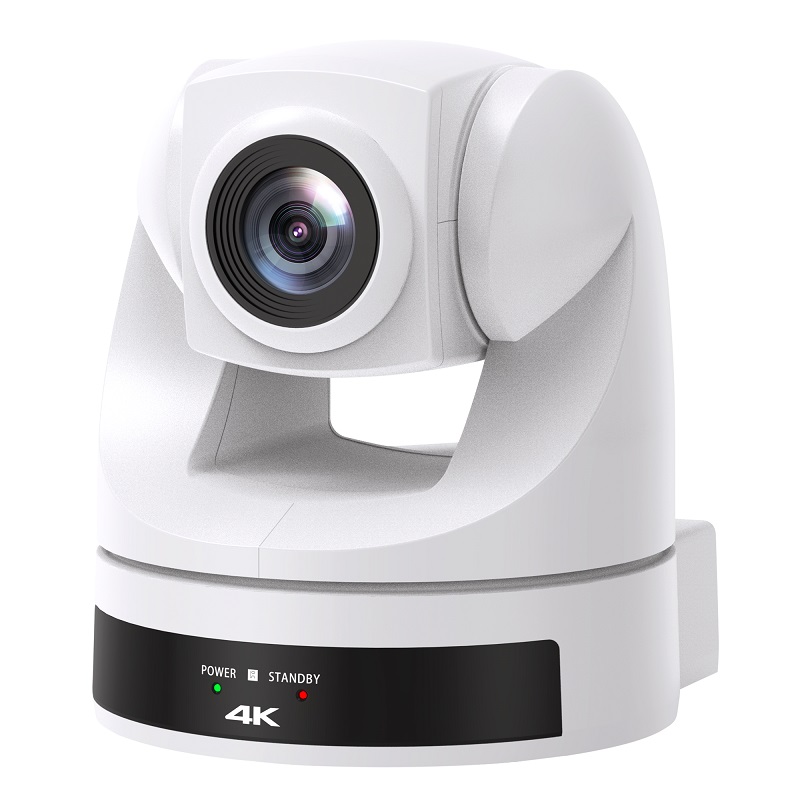

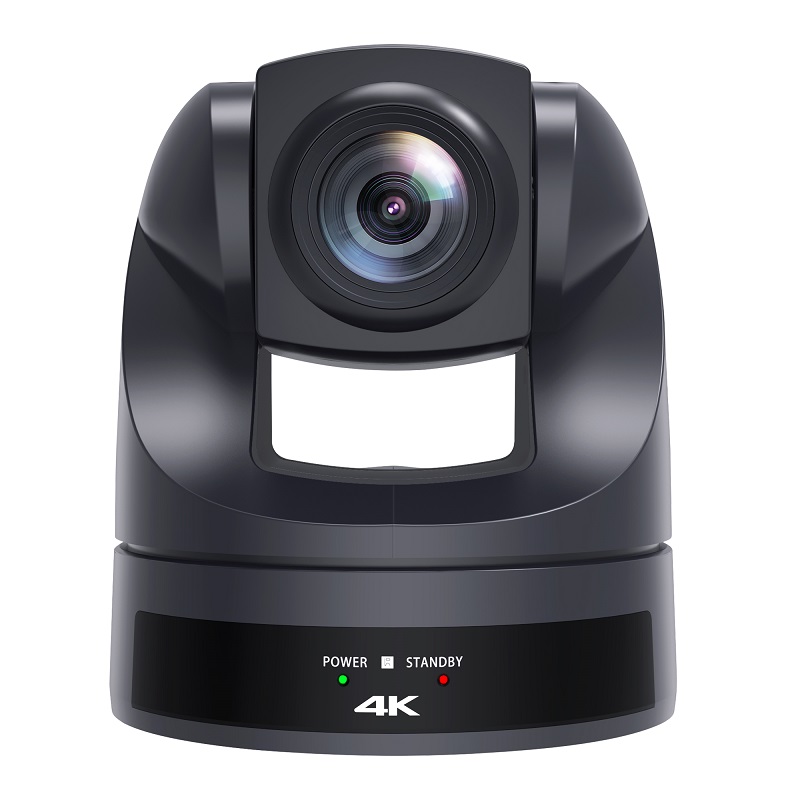

PTZ Camera

4K 20X HDMI POE Camera

SONY 1/2.8-inch high-quality CMOS
HDMI + USB3.0 + LAN output
Support YUY2, H265, MJPG, H264, etc.
Support VISCA (including VISCA Over IP), PELCO P/D etc. protocol
Product description: The 4K UHD PTZ camera adopts a 1/2.8-inch CMOS high-quality image sensor that can be used in conjunction with any codec or other system to output high-quality, high-resolution images.
INQUIRY

Main Applications:

Widely used in video conferencing, distance teaching, telemedicine, worship, church, event scene, court, multimedia center, chain stores, transportation, airport and other monitoring places.

Functional Characteristics:

4K Ultra HD display:

Using the new generation of SONY 1/2.8-inch high-quality CMOS, can achieve the maximum 4K30 output, more large scene recording;

20X optical zoom lens:

With 58.7° FOV, meet more scenes such as large conference hall video conference, lecture theatre blackboard writing and other real details to restore;

HDMI + USB3.0 + LAN output, rich application scenarios:

Compatible with all the current mainstream video output interfaces, HDMI + USB3.0 can output 4K30 resolution at the same time, LAN supports Full HD 1080P output;

Low light:

The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB;

Infrared remote control signal transmission function:

In addition to receiving its own infrared remote control signal, it can also receive the consumer infrared remote control signal, and send it to the video conference terminal through the VISCA port;

Multiple video compression standards:

Support YUY2, H265, MJPG, H264 multiple video compression formats;

Multiple network protocols:

Support ONVIF, SRT, RTSP, RTMP and other network protocols, support POE power supply;

Multiple control protocols:

Support VISCA (including VISCA Over IP), PELCO P / D protocol, support automatic identification protocol.

Technical Parameter:

Name	4K UHD PTZ camera
Camera
Video format	HDMI ：4K/30，4K/25，1080p/60，1080p/59.94，1080p/50，1080p/30，1080p/29.97，1080p/25，720 p/60，720p/50
Sensor	SONY 1/2.8 STARVIS CMOS
Scanning mode	Progressive
Lens	20x optical zoom, f=5.2mm (wide angle end) ~104mm (distal)
Focus	Automatic, manual
minimal illumination	0.1 Lux @ (F1.5, AGC ON)
White balance	Automatic, indoor, outdoor, keyboard control, automatic tracking
Backlight	Support
Digital noise reduction	2D & 3D digital noise reduction
noise-signal ratio	≥50dB
Horizontal field of view angle	58.7°(W) ～3.2°(T)
Vertical field of view angle	32.2°~ 1.8°
Horizontal rotation range	±168°
Vertical rotation range	-30°~ +90°
Horizontal rotation speed range	1°~ 60°/s
Vertical rotation speed range	1°~ 60°/s
POE supply electricity	802.3af
Number of prepositions	Remote control can be set 9, keyboard can set up to 200 preset bits
Preposition accuracy	0.1°±10%
USB characteristic
The USB video communication protocol	UVC 1.1
The UVC video encoding format	YUY2、MJPEG
The UVC video system	320x240、352x288、640x360、640x480、720x480、720x576、800x600、960x540、1280x720、1920x1080、2560x1440、3840x2160
UVC PTZ Control	support
The UVC video frame rate	Up to 30
network characteristic
video bitstream	Main code stream x1
Video coding format	H.264、H.265
Streaming media protocols	RTMP、RTSP、RTMPS、ONVIF
Main code flow resolution	1920x1080
Code rate control	Variable code rate, and fixed-code rate
Audio compression standard	AAC
Audio code rate	128kbps
Support agreement	TCP / IP, RTSP, RTMP, Onvif, DHCP, etc

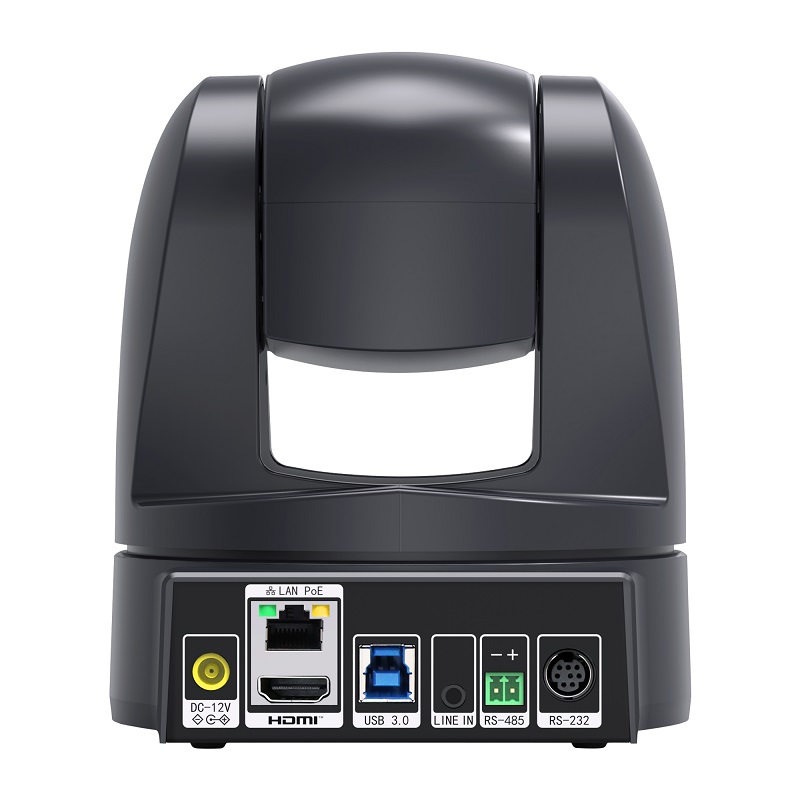

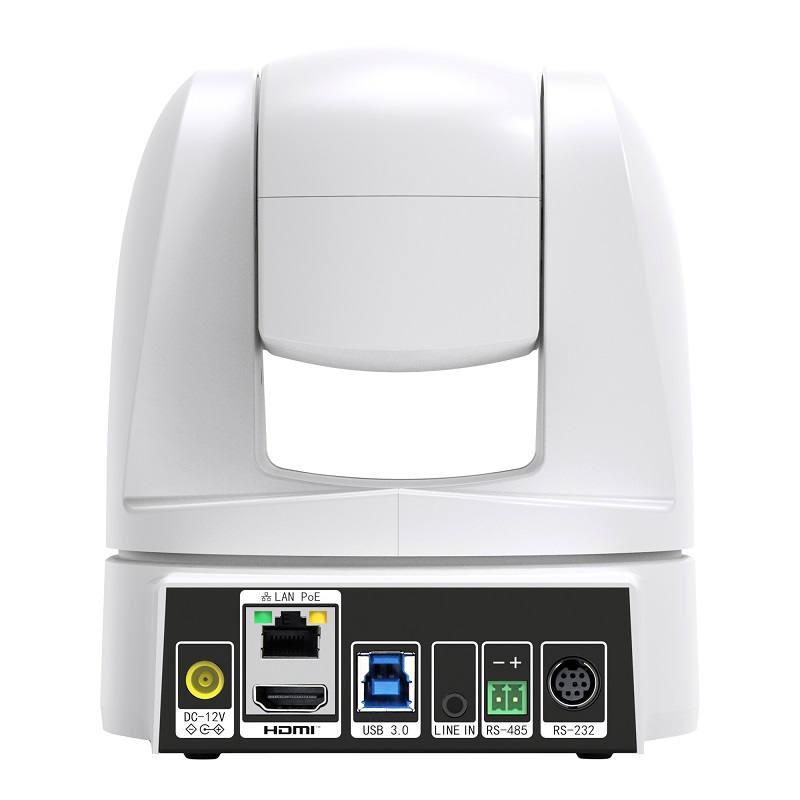

inputoutput interface
HD output	1-way, HDMI: Version 1.4
network interface	1 route, RJ 45:10M / 100M adaptive Ethernet port
USB joggle	1-way, USB 3.0, Type-B socket
Audio interface	The 1-way, Line In,3.5mm audio interface
communication interface	Route 1 route: RS232 IN: Maximum distance: 30 m, VISCA / Pelco-D / Pelco-P protocol
communication interface	Route 1 route: RS485 IN: Maximum distance: 1200 m, VISCA / Pelco-D / Pelco-P protocol
Power interface	DC 12V IEC60130-10 (JEITA standard RC-5320A) TYPE 4
General specification
input voltage	DC 12V
input currenton	1.0A (max.)
power dissipation	Maximum 12W
working temperature	0~40℃
Storage temperature	-10~60℃
size	153(L) * 134(W) * 153(H) mm
color	black
weight	About 1200g
Random accessories	DC 12V Power adapter, IR remote control, operation instructions, RS-232 cable, USB cable, bracket
