Joystick Controller

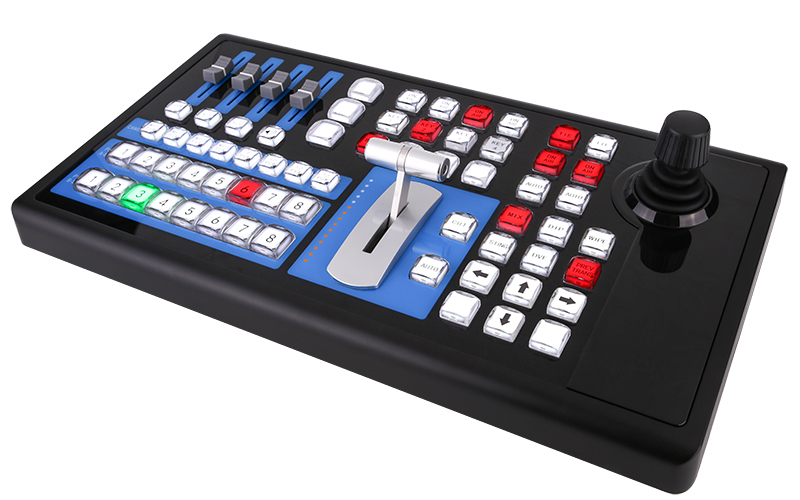

PTZ Joystick USB Vmix Controller VK2
- USB plug and play
- VISCA Pelco RS232 422 485 control
- 4-channel audio modulation, mute control
- Hall-type three-axis joystick
- Product description: PTZ Joystick USB Vmix Controller is suitable for audio and video live broadcast system, audio and video recording and broadcasting system.
-
The multifunctional keyboard controller is suitable for live audio and video broadcast systems and audio and video recording systems.
Features:
● Buttons: imported two-color backlit buttons
● Joystick: Hall-type three-axis joystick
● T-type push rod: Hall-type T-type video push rod, LED progress indicator
● Volume adjustment: 4-channel audio adjustment, mute control
● Communication interface: USB, RS232, RS422
Technical parameters:
● Power supply: DC12V/1000Ma
● Buttons: 63 imported two-color buttons
● Volume adjustment: 4-channel audio adjustment, mute control
● Joystick: 1 three-axis joystick
● T-type push rod: 1 T-type video push rod

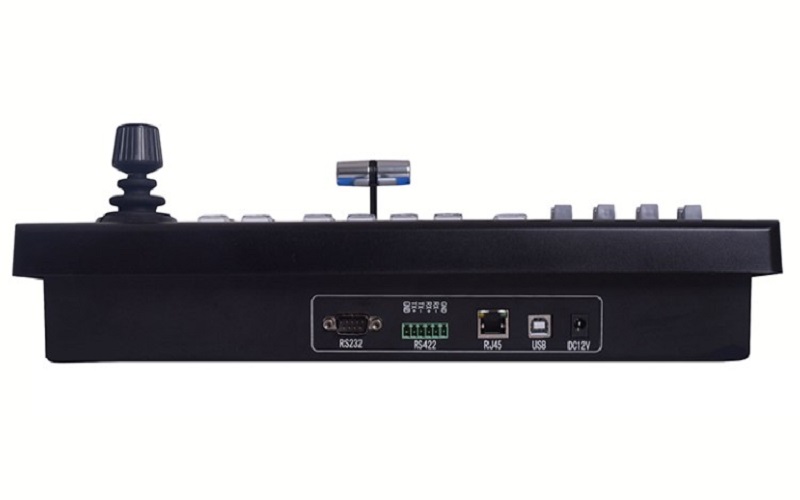

● Communication interface: USBX1, RS232X1, RS422X1
● Baud rate: RS232, 9600, 8, 1, N
● Static weight: 3.0KG
● Gross weight: 4.35KG
● Product size: 400X220X114mm
● Outer box size: 47x28x20cm
∷
