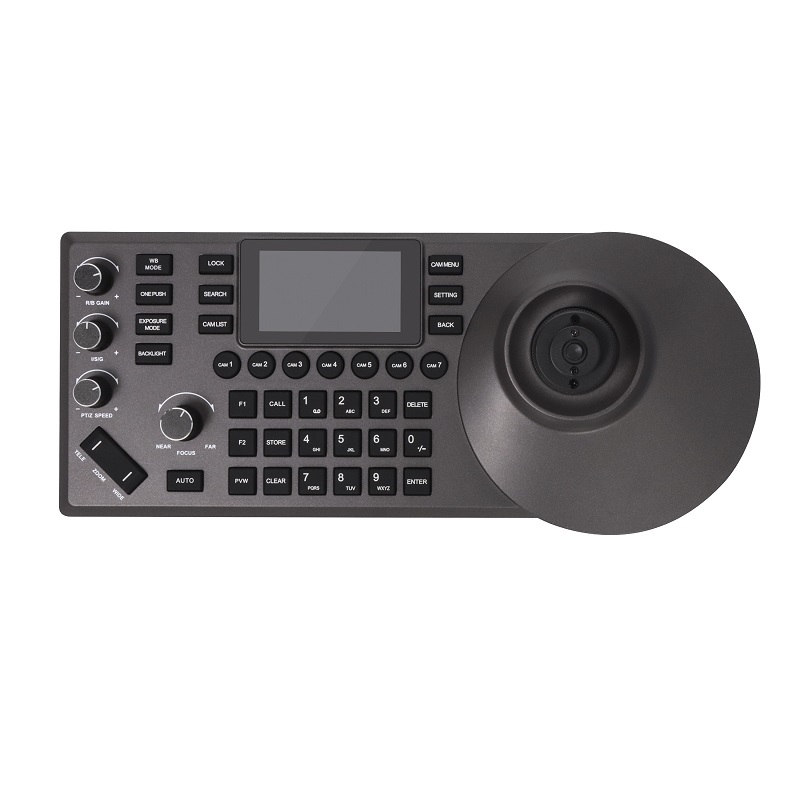

Joystick PTZ Camera Controller

Features:

●4D precise Joystick+3D knobs+ergonomic zoom button:

Camera parameters control such as white balance, exposure, focus and zoom etc.

●Built-in 3-inch color screen:

Support real-time PVW of current camera viewing through up streaming (NDI HX2 and RTSP only).

●Support 7 cameras selection shortcuts:

7 camera shortcuts can be set quickly according to requirements; Up to 1000 cameras information can be saved.

●Newly upgraded UI operation interface:

Display main parameters of cameras directly, personalize stylish interface casually.

●Remote control of PTZ camera menu:

Open camera’s menu quickly and combine PVW screen or image screen to control.

●White and red backlight silicone buttons:

High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

●Support buttons lock via one click:

Lock buttons via one click to avoid misoperation.

●Multiple control protocols, apply to abundant venues:

Support VISCA、VISCA Over IP、VISCA TCP、PELCO P/D、Onvif and NDI, support automatic protocol recognition.

* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details.

●Abundant interfaces, multiple connection methods:

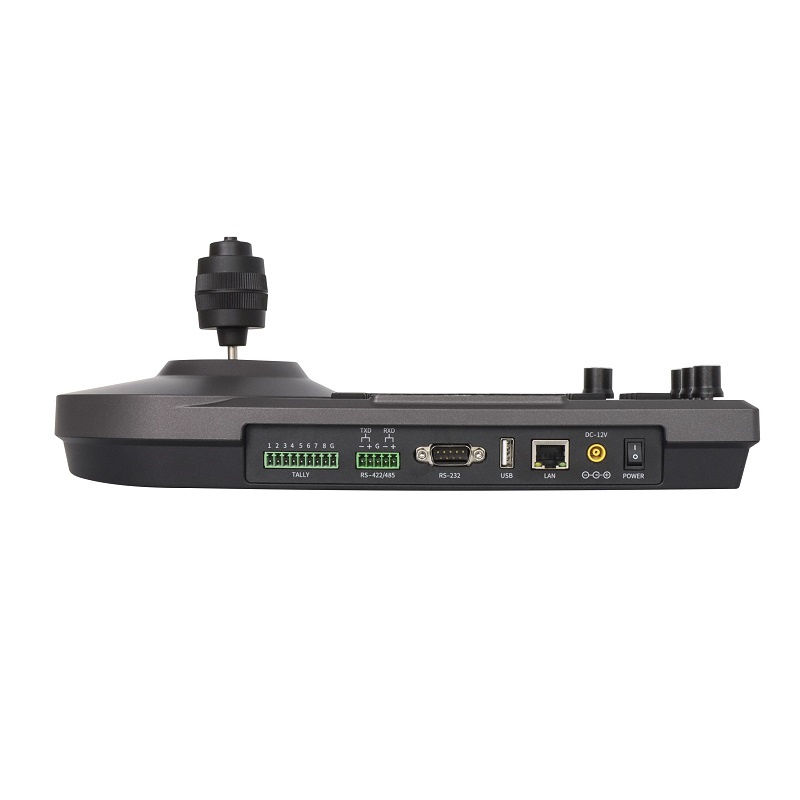

External RS-232, RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble.

●External tally interface:

Support up to 8 tally channels.

●Support customizable buttons:

Support customizable buttons F1, F2, can set the best operation function according to requirement.
